DPP® HIV-Syphilis

The First & Only FDA Approved, CLIA Waived* HIV-Syphilis Rapid Test

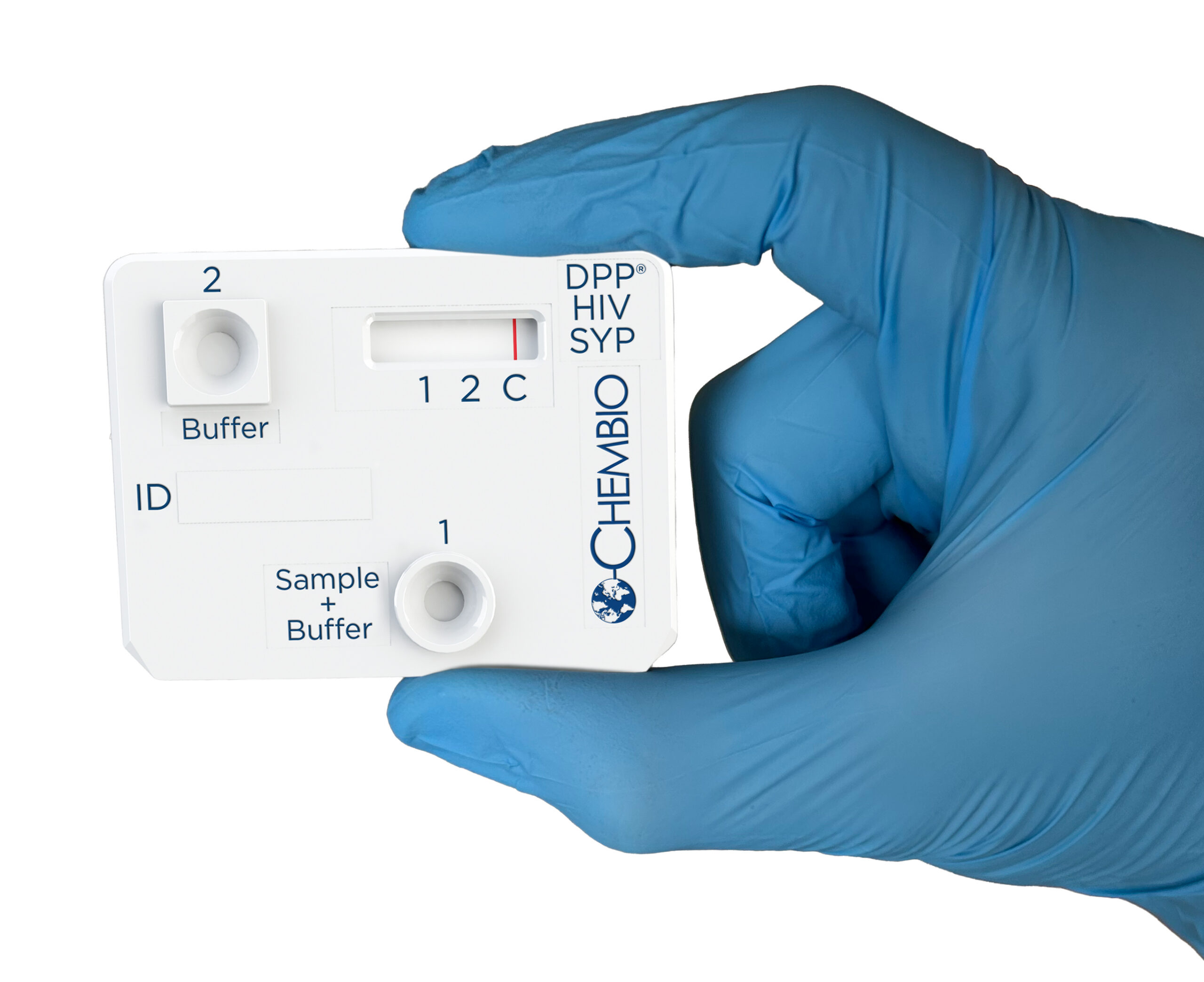

DPP HIV Syphilis CLIA Waived Product Image

An FDA Approved, CLIA Waived* dual rapid test for the detection of antibodies to HIV 1/2 and Treponema pallidum in fingerstick whole blood, venous whole blood, or plasma specimens.


  • Patented DPP® technology allows for higher sensitivity:
    >99% for HIV and >94% for T. pallidum
  • Built-in procedural control

Easy to Use

  • Small sample volume: 10 μl
  • 15 minute dual rapid test
  • Provides objective results using simple, handheld digital reader
    (DPP® Micro Reader)


  • Combined reimbursement: CPT Codes 86703, 86780
  • Ideal as the first line rapid test in your algorithm

Fighting the Syphilis and HIV Epidemics: Voices from the Field – NCSD Webinar

Frequently Asked Questions

Are there other confirmatory tests needed when using these rapids?

In the reverse testing algorithm for syphilis, you will need to reflex to RPR to find out if you have an active or past infection. For HIV you would need to confirm a positive based on your site’s protocols.

Could temperature be a factor when using this test in the field or on the street?

The test components should be at room temperature, 18 to 25 C (64 to 77  F), before performing the test and the test should be performed within the same temperature range. If the temperature of the testing area falls outside of 18 to 25 C (64 to 77 F) it is recommended to perform QC prior to testing.

Is it possible to visually interpret the test?

 No. The test must be read using the DPP Micro Reader.

Is there any data regarding efficacy with pregnant patients?

Yes, we do have multiple sets of data in our IFU that addresses the test performance in this population of patients. Please visit the Chembio website at or contact Chembio at [email protected] for a copy of our IFU.

Is this test 4th generation for HIV?

We do not detect antigen to HIV, just antibodies to HIV, the following papers support this approach to the rapid HIV Testing.

The paper ‘Field Accuracy of fourth Generation Rapid Test’ by Lewis et al analyzed 4 studies that included 17,381 samples screened using 4th generation (Antigen-Antibody) rapid tests.


  • 26 reference-standard-defined acute HIV infections were missed
  • 35 false positives were observed

Lesson’s Learned: ‘Fourth-generation RDTs are currently unsuitable for the detection of acute HIV-1’ at the point of care.

Why the Poor Test Performance: The assay detects free HIV-1 p24 antigen. This has a short window of detection. “Antibodies form immune complexes with antigen in the bloodstream and preclude binding of antigen to the test strip. This technical difficulty can be overcome with an antigen dissociation step, but this may be hard to implement at the point of care.”

Is the concern for syphilis biological false positive the same as with traditional testing?

The term “biological false positive” for syphilis is defined as a positive reaction to regain tests (non-trep), but negative reaction to treponemal tests. Non-trep such as RPR, are looking for anti-cardiolipin antibodies which are not specifically associated with treponemal infections, so having a positive RPR and negative Treponemal test is what is usually referred to as a biological false positive when the traditional algorithm is used.

What is the shelf-life?

24 months from date of manufacture

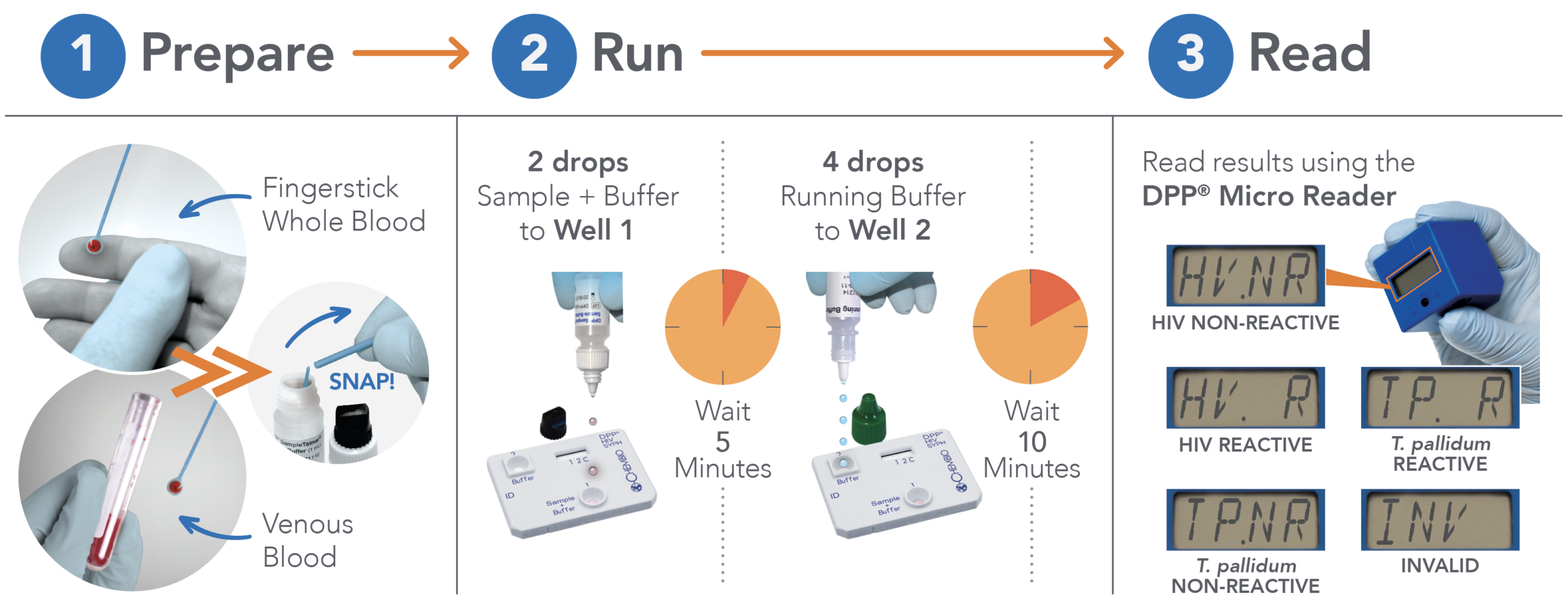

Test for HIV & Syphilis in 3 Easy Steps with DPP®

DPP HIV-SYPH Protocols

DPP HIV-Syphilis Video for Fingerstick Blood

Product Performance

Parameter* HIV** Treponema pallidum**
Sensitivity 99.4% 94.7%
Specificity 99.6% 95.5%

* Refer to product insert for details
** For fingerstick whole blood

Information Type Product Detail
Method Dual Path Platform
Time to Results 15 minutes
Test & External Controls Shelf Life 24 months
Storage Conditions 2 to 25°C (36 to 77°F)
CPT Codes 86703; 86780
More Reimbursement Info

Product Downloads & Links

Please fill out the form below to receive product materials.

Ordering Information

Product Catalog Number
DPP® HIV-Syphilis (20 tests) FDA Approved 65-9502-0
DPP® HIV-Syphilis Rapid Test Control Pack 60-9555-0
DPP® Micro Reader for Use with DPP® HIV-Syphilis 70-1056-0
